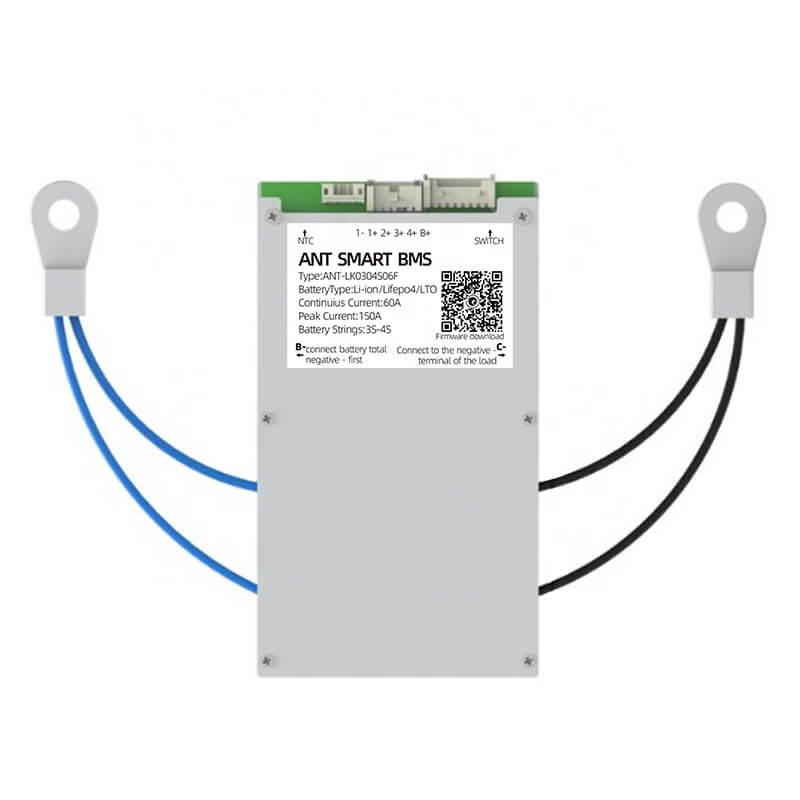

ANT BMS 3S-4S 60A-380A Smart 12V Lifepo4 li-ion LTO Battery Protection Board
$38.98 – $89.98

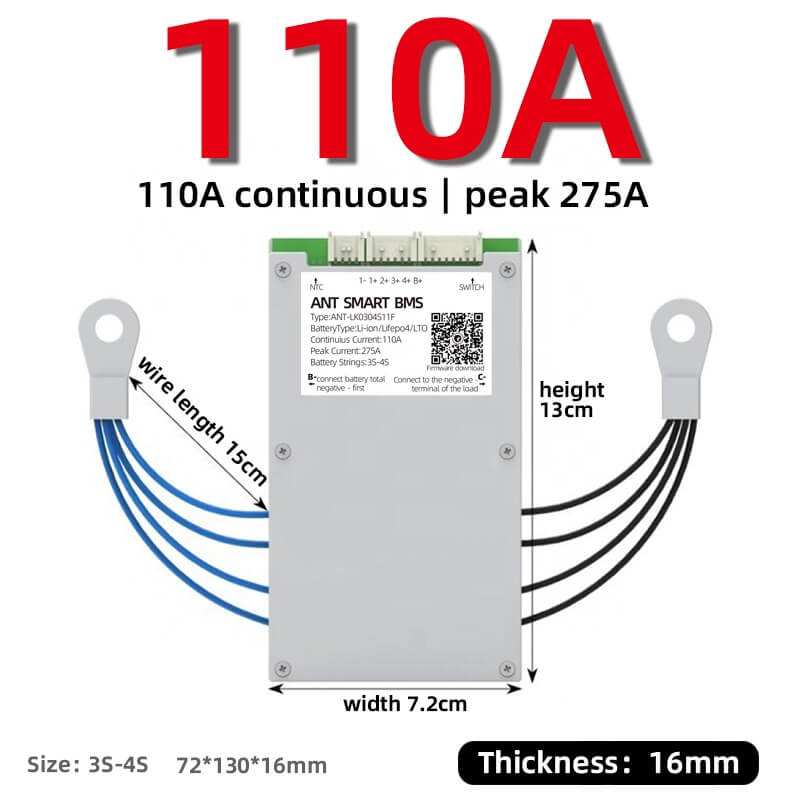

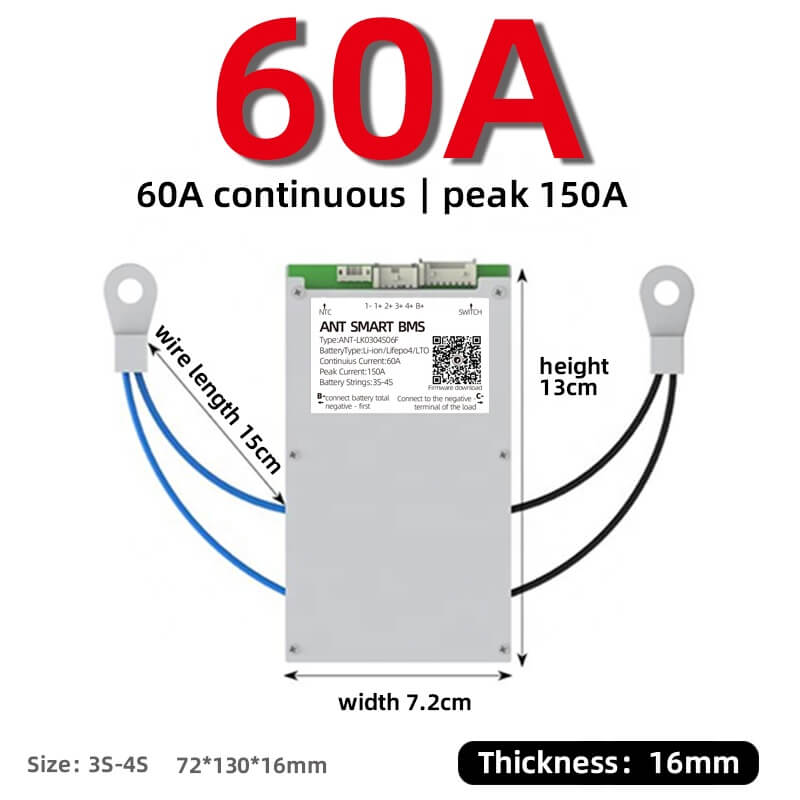

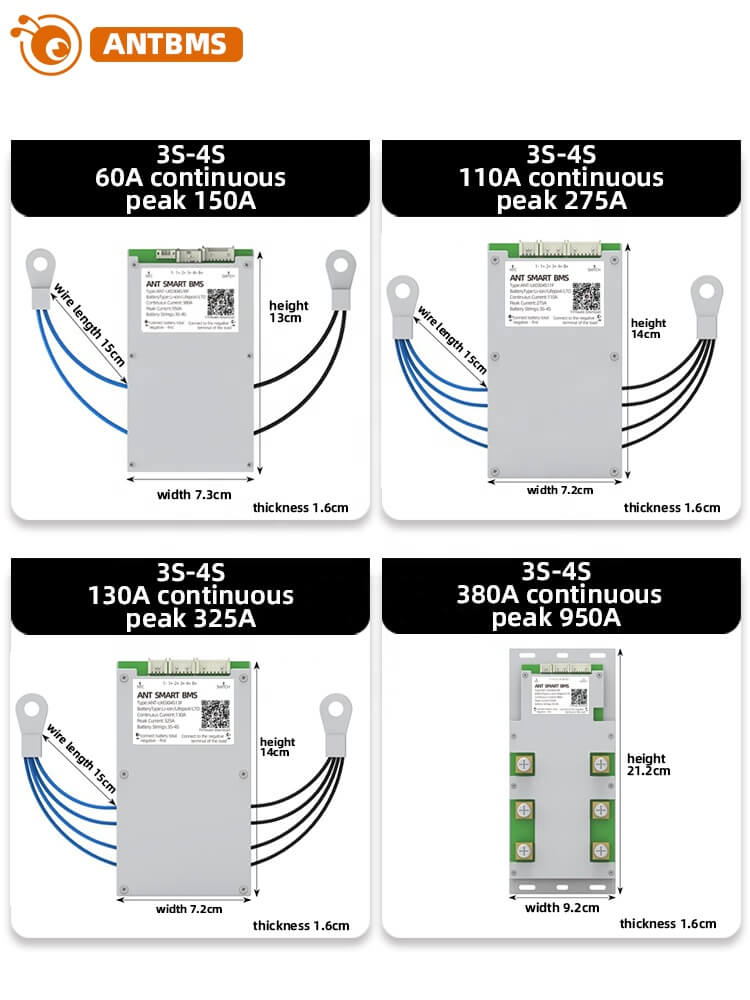

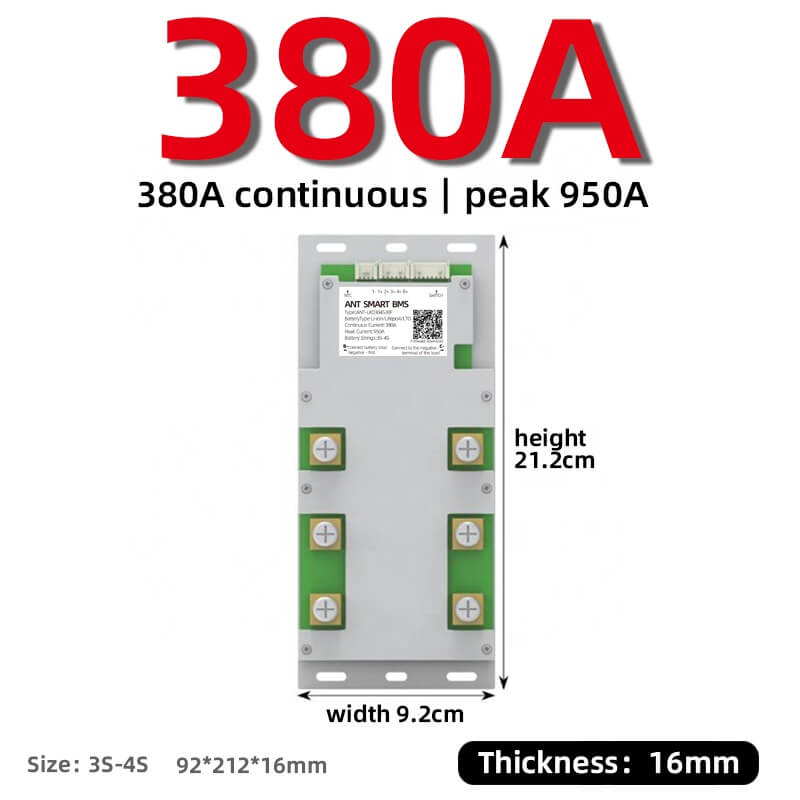

ANT BMS 3S-4S Smart Lifepo4 li-ion LTO Battery Protection Board,Built-in Bluetooth,Support Android and IOS apps. Continuous Current 60A,Maximum Discharge Current 150A (max 10s). Continuous Current 120A,Maximum Discharge Current 300A (max 10s). Continuous Current 380A,Maximum Discharge Current 950A (max 10s).
Description
ANT BMS Smart BMS
● Number of Battery Strings:3S to 4S.
● Power supply mode:The battery pack is self-powered and 8-16V DC input.
●Single cell voltage detection range:0-5V,error<20mV over full operating range,Typical error value<10mV.
● Support single cell voltage dropout detection.
● Balance current:100mA,Passive balance.
● Wiring method:same port.
● Short Circuit Protection:Support.

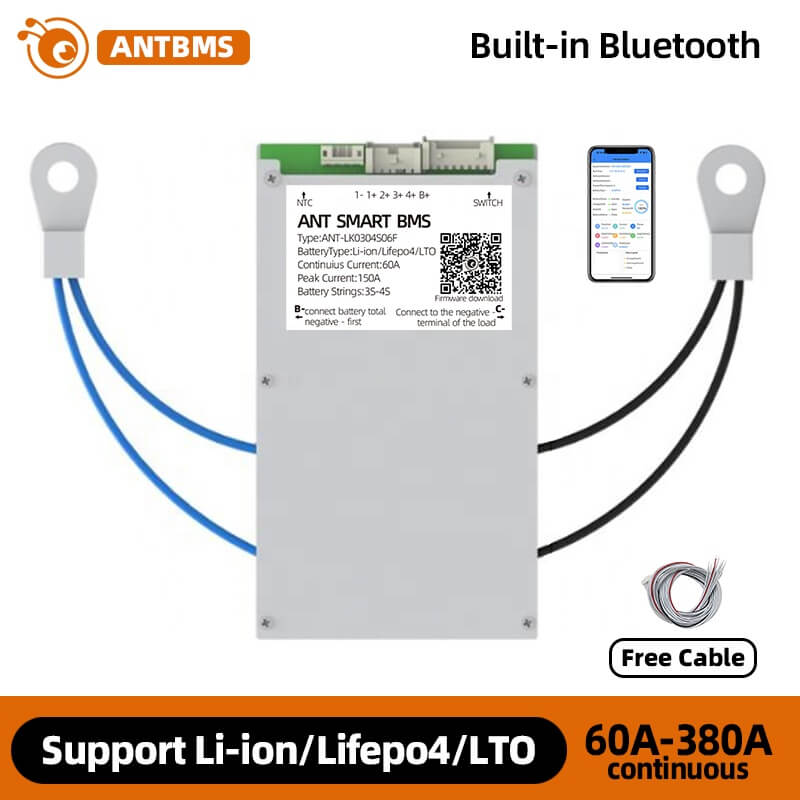

● Bluetooth Function:Bluetooth Built-in,Support for Android /IOS Phone.
● Temperature detection:-40～125℃.
● Total voltage detection Detection range:0-100V,<0.5%FSR(FSR=full scale).
●Current Sense Shunt:-150A~300A,Error<0.5%FSR.
●SoC estimation accuracy:Error<8%(operating conditions).
● Battery remaining capacity:error range is less than 8%
● Total Cycle AH Cumulative value is half of the charge/discharge value.
●Operating power consumption:<5mA(without communication)/15mA(485/CAN).
● Standby power consumption:<2mA.
●Operating Temperature:-40~85°C.
● Storing Temperature:-40～95℃.
Additional information
| Charge Voltage | LifePo4: S*3.65V / Li-ion: S*3.4.2V / LTO:S*2.8V |
|---|---|
| Over Charge Detect Voltage | 1.2V-4.35V,Adjustable |
| Over Charge Protection Delay | 1S |
| Over Charge Release Voltage | 1.2V-4.35V,Adjustable |
| Balance Detect Voltage | 3.8V,Adjustable |
| Balance Current | 100mA |
| Balance Method | Passive Balance(Full State On) |
| Single Cell Voltage Range | 0-5V |
| Voltage Acquistion Accuracy | Single Voltage:0.001,Total voltage:0.01 |
| Total Voltage Detection Range | 0-100V,<0.5% FSR(FSR =full scale) |
| Over Discharge Detect Voltage | 1.2V-4.35V,Adjustable |
| Over Discharge Protection Delay | 1S |
| Over Discharge Release Yoltage | 1.2V-4.35V,Adjustable |
| Short Circuit Protection | YES |
| Quantity of Temperature Detection | 2 Pcs |
| Temperature Protection Degress | -40℃~125℃ |
| Working Temp Range | -40℃~85℃ |
| Storing Temp Range | -40℃~85℃ |
| Wiring Method | Same Port |
| Coulomb Counter | YES |
| Bluetooth Function | Support for Android / IOS Phone |
