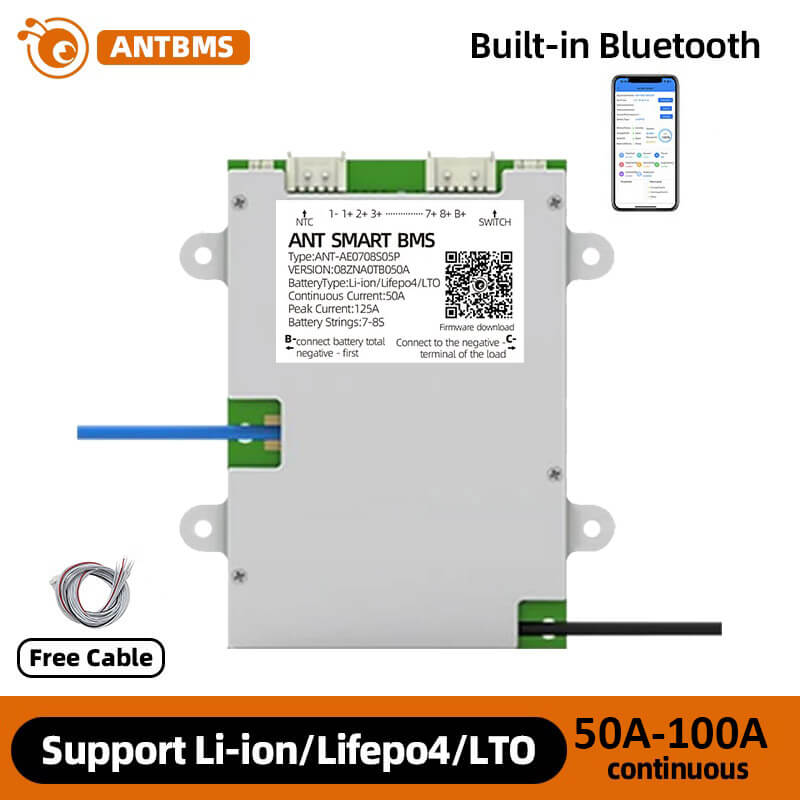

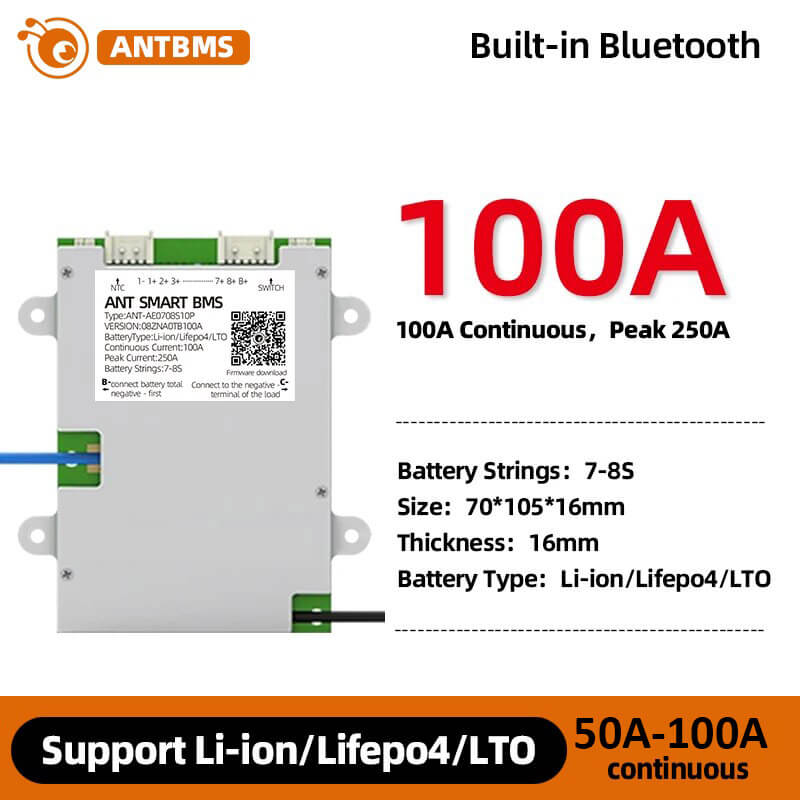

ANT BMS 7S 8S 50A-100A Smart 24V Lifepo4 li-ion LTO Battery Protection Board
$36.98 – $46.98

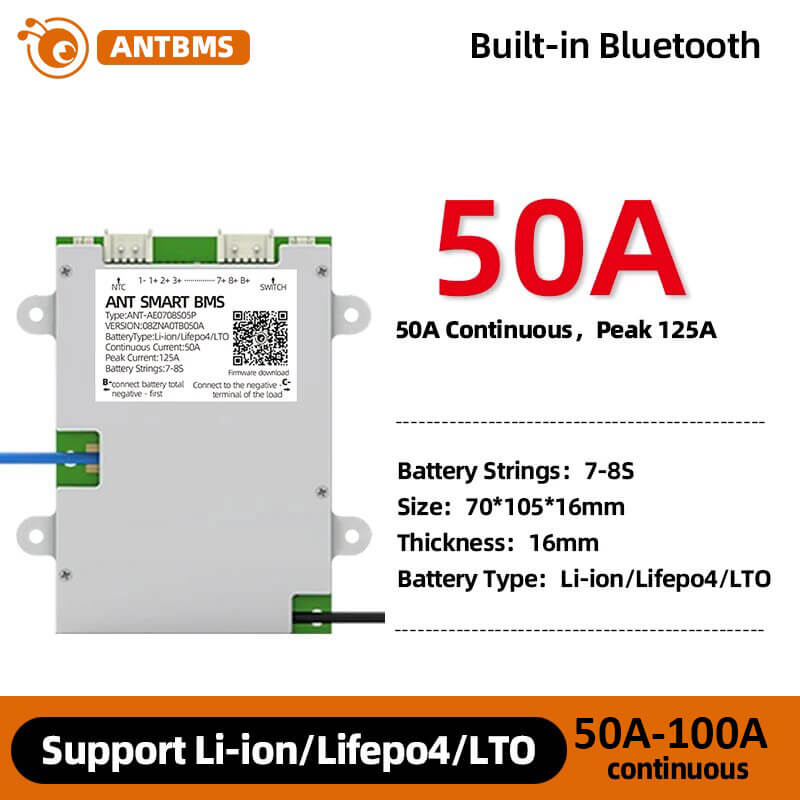

ANT BMS 8S 50A-100A Smart 24V Lifepo4 li-ion LTO Battery Protection Board. Continuous Current 50A,Maximum Discharge Current 125A (max 10s). Continuous Current 100A,Maximum Discharge Current 250A (max 10s)
Description
ANT BMS Smart BMS
● Number of Battery Strings:8S.
● Power supply mode:The battery pack is self-powered and 20-80V DC input.
●Single cell voltage detection range:0-5V,error<20mV over full operating range,Typical error value<10mV.
● Support single cell voltage dropout detection.
● Balance current:100mA,Passive balance.
● Wiring method:same port.
● Short Circuit Protection:Support.

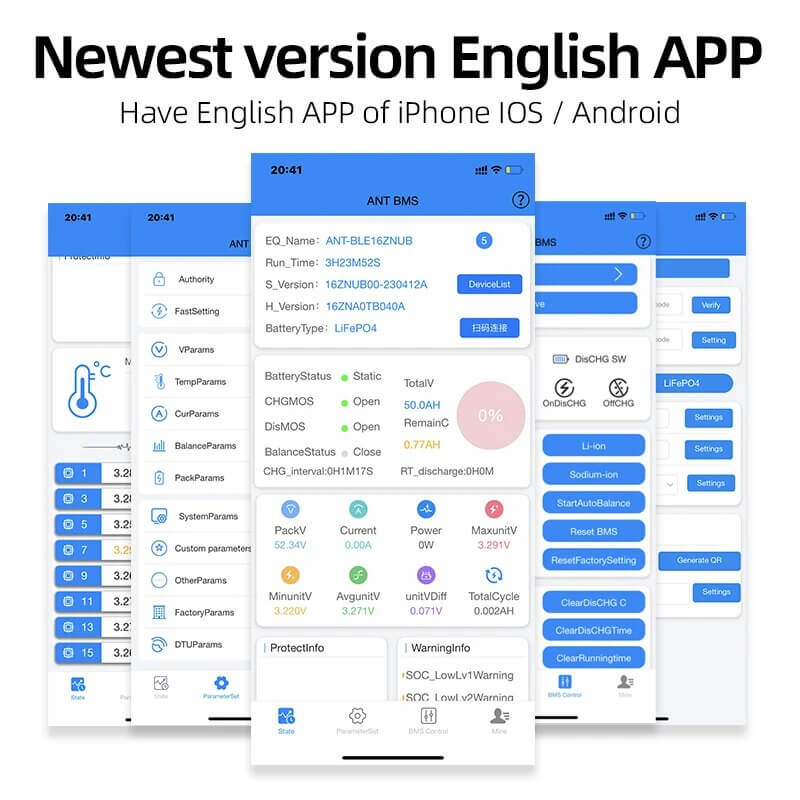

● Bluetooth Function:Bluetooth Built-in,Support for Android /IOS Phone.
● Temperature detection:-40～125℃.
● Total voltage detection Detection range:0-100V,<0.5%FSR(FSR=full scale).
●Current Sense Shunt:-150A~300A,Error<0.5%FSR.
●SoC estimation accuracy:Error<8%(operating conditions).
● Battery remaining capacity:error range is less than 8%
● Total Cycle AH Cumulative value is half of the charge/discharge value.
●Operating power consumption:<5mA(without communication)/15mA(485/CAN).
● Standby power consumption:<2mA.
●Operating Temperature:-40~85°C.
● Storing Temperature:-40～95℃.
Additional information
| Charge Voltage | LifePo4: S*3.65V / Li-ion: S*3.4.2V / LTO:S*2.8V |
|---|---|
| Over Charge Detect Voltage | 1.2V-4.35V,Adjustable |
| Over Charge Protection Delay | 1S |
| Over Charge Release Voltage | 1.2V-4.35V,Adjustable |
| Balance Detect Voltage | 3.8V,Adjustable |
| Balance Current | 100mA |
| Balance Method | Passive Balance(Full State On) |
| Single Cell Voltage Range | 0-5V |
| Voltage Acquistion Accuracy | Single Voltage:0.001,Total voltage:0.01 |
| Total Voltage Detection Range | 0-100V,<0.5% FSR(FSR =full scale) |
| Over Discharge Detect Voltage | 1.2V-4.35V,Adjustable |
| Over Discharge Protection Delay | 1S |
| Over Discharge Release Yoltage | 1.2V-4.35V,Adjustable |
| Short Circuit Protection | YES |

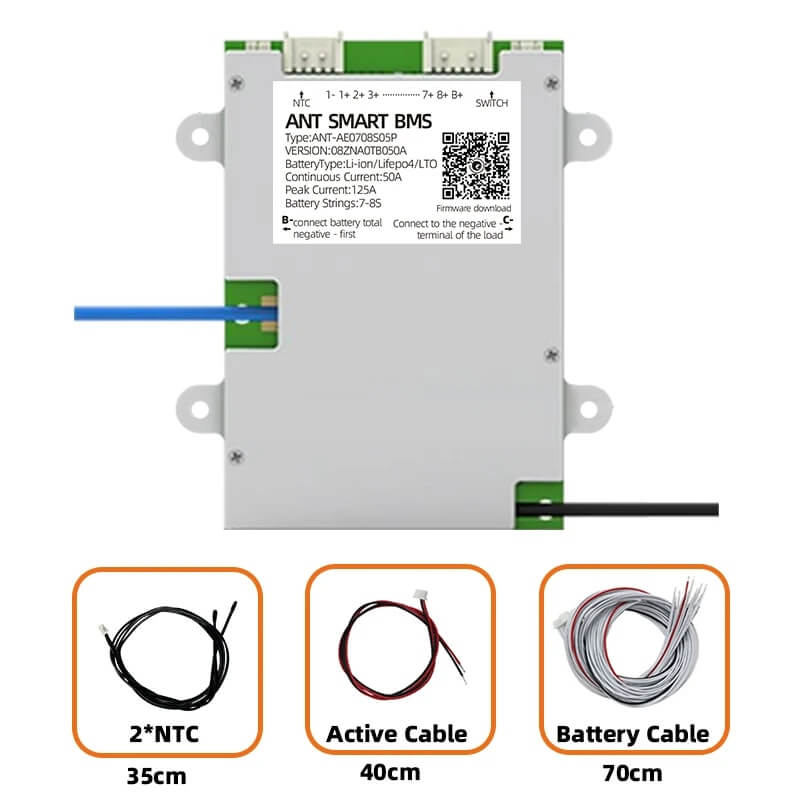

| Quantity of Temperature Detection | 2 Pcs |
| Temperature Protection Degress | -40℃~125℃ |
| Working Temp Range | -40℃~85℃ |
| Storing Temp Range | -40℃~85℃ |
| Wiring Method | Same Port |
| Coulomb Counter | YES |
| Bluetooth Function | Support for Android / IOS Phone |
Related products
-

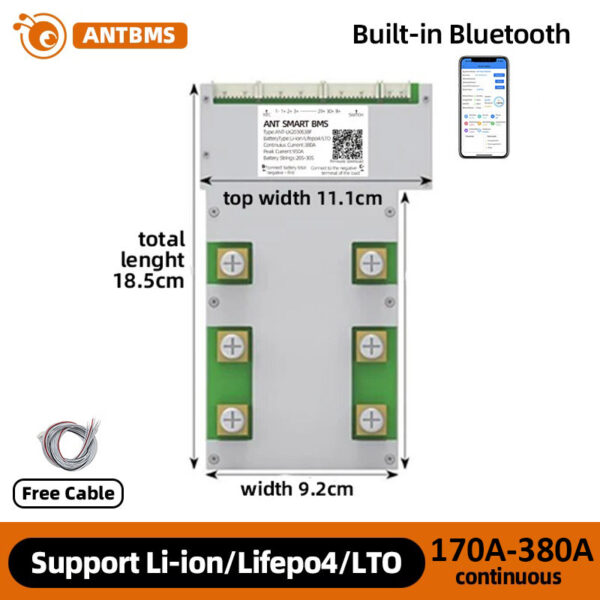

ANT BMS 21S-30S 170A-380A 420A Smart 112V Lifepo4 li-ion LTO Battery Protection Board
